Walkie Talkie Best Sale Choice provide two way radio,walkie talkie Hot Clearance AW07A HF VHF UHF 160M Impedance SWR Antenna Analyzer for HAM Radio Hobbists DIY Walkie Talkie Two Way Radios. Price at this time US $316.49/piece. Check price now to get discount! Dont waste your time. Buy Now only in Measuring Tools Trusted Seller Store!

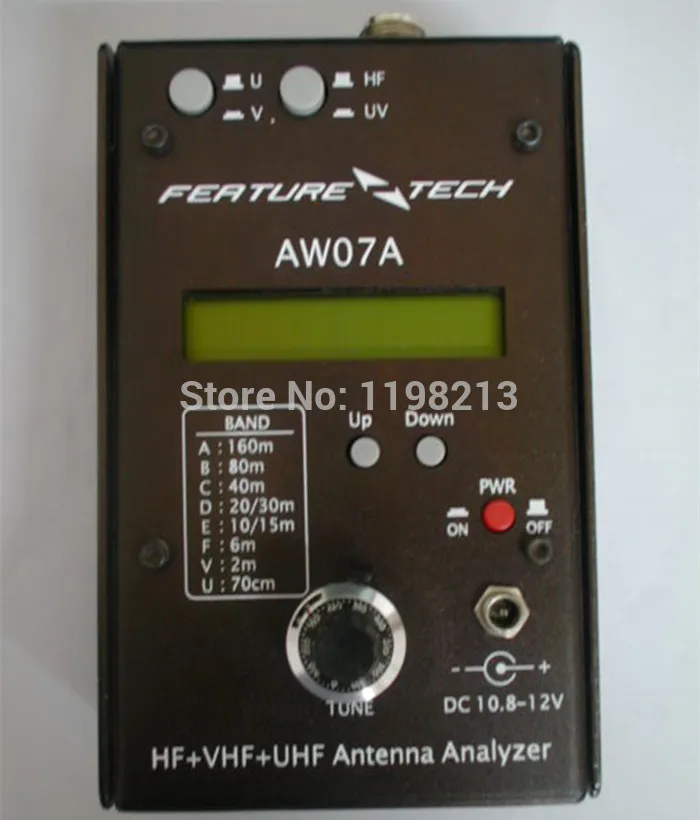

AW07A HF VHF UHF 160M Impedance SWR Antenna Analyzer for HAM Radio Hobbists DIY Walkie Talkie Two Way Radios
INTRODUCTION:
status of your antenna, measure the impedance and reactance component and help you to solve antenna
problems. This unit combines six basic parts: a variable oscillator, frequency counter, independent oscillator,
50 ohm RF bridge detector, an A-D converter, and microcontroller. This compact product was built to feed the
need for the solid construction and field test. The operating frequency range of this unit goes from HF, and
extends up to 490MHz. It is specially designed for analyzing 50ohm antenna system. It measures RF
impedances from a few ohms to several hundred ohms. The AW07A is also an L/C meter, measuring the
values of capacitors and inductors. Additionally, it could be a non-precision signal source and frequency
counter. With a built-in RF strength meter, it tests the RF field strength near your antenna system, and its
very useful when you need to know the RF interference status around your station. The AW07A also
functions as a non-precision signal source and frequency counter. The operating frequency range of this unit
extends from 1.5 to 71 MHz in six overlapping bands, and includes SWR measurements on 85-185MHz ,
300-490 MHz.
FEATURES LIST:
2. CAPACITANCE METER
3. INDUCTANCE METER
4. SHOW REACTANCE VALUE
5. SHOW IMPEDANCE VALUE
6. SWR VALUE FROM 1.1 TO 9.99
7. RF STRENGTH METER
8. FREQUENCY COUNTER
SPECIFICATIONS:
2. RF Output Level : 2Vpp
3. SWR Range : 1~9.9
4. Impedance Range: 10~500ohm
5. Reactance Range:
6. L measurement Range:
7. C measurement Range:
8. External Power : DC 10.8~12V
9. Battery : 8 * AA Alkaline Battery
10. Power Consumption : < 150mA (HF Bands, B/L Off), < 165mA (VU Bands, B/L Off)
11. Weight: 0.6 kg
12. Size: 155 (W)×100 (D)×55(H)
Package list :
Antenna Analyzer*1
power cable*1
