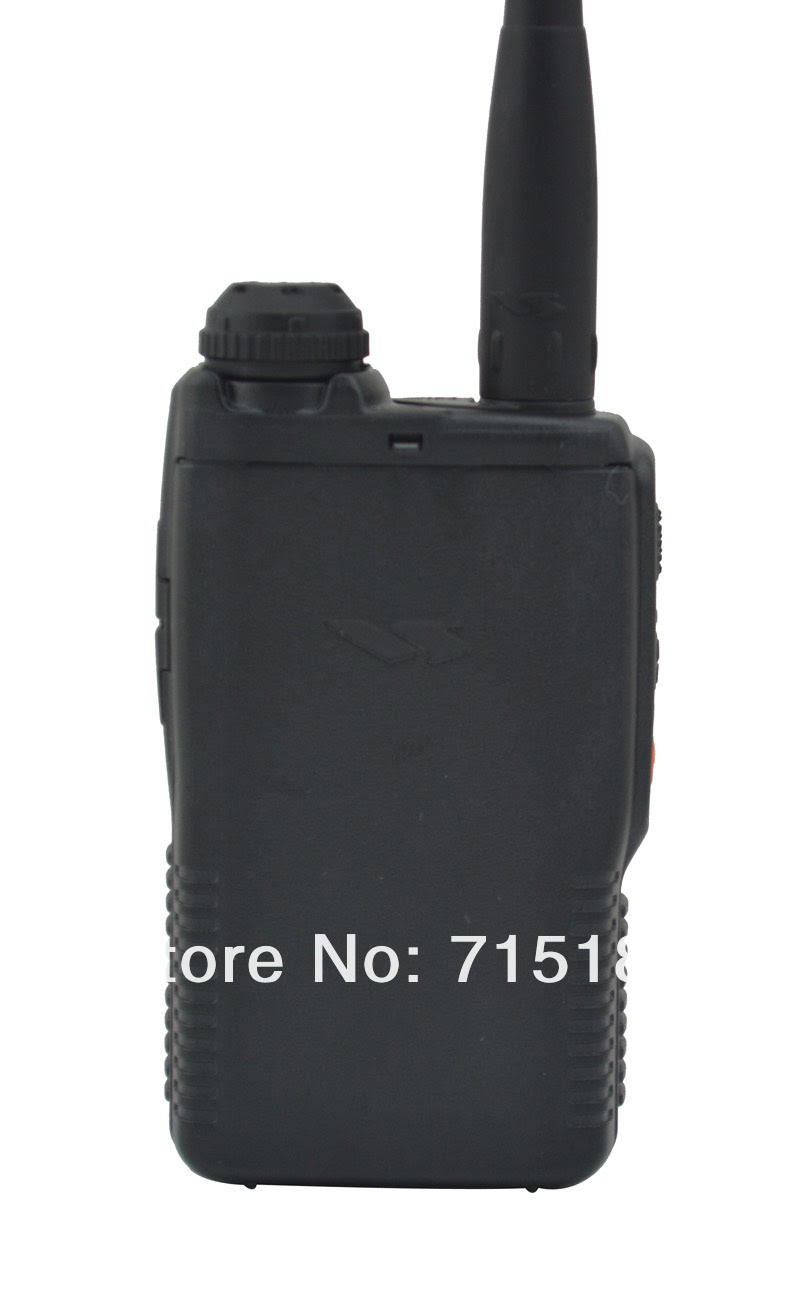

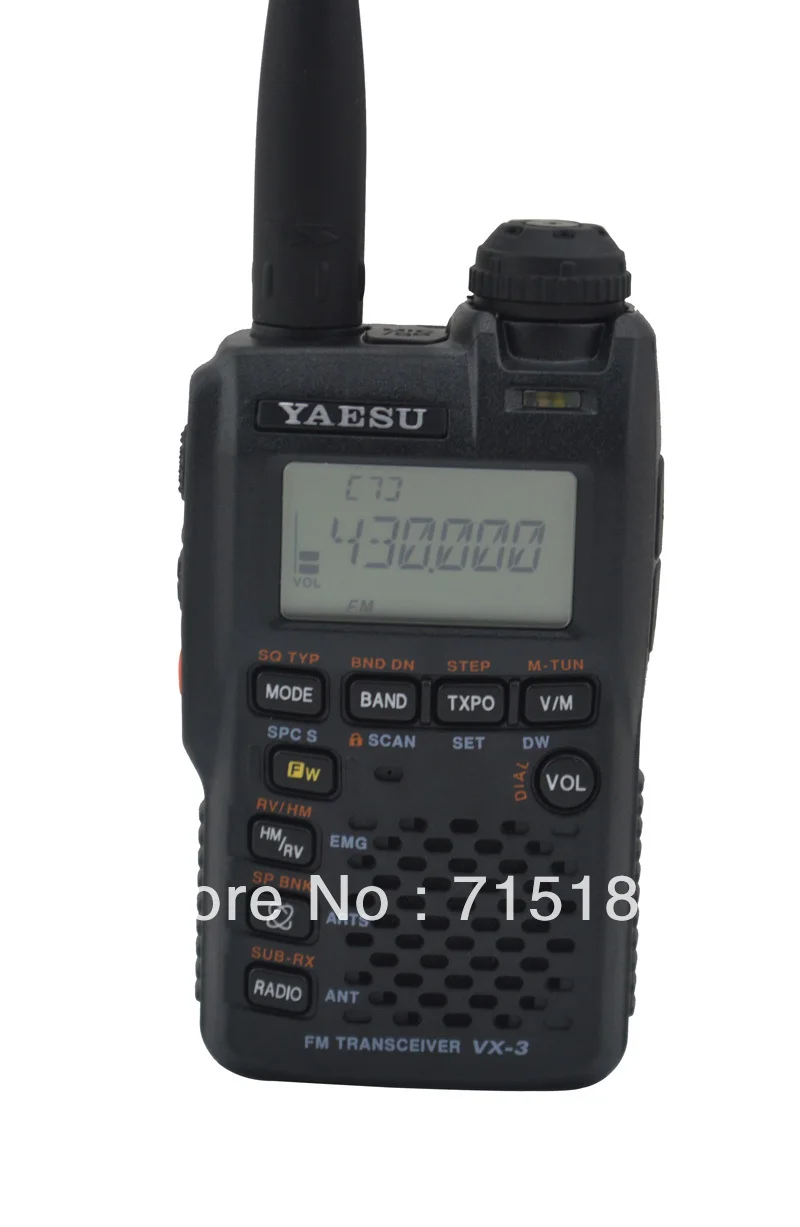

Yaesu VX-3R Ultra-compact Dual Band Handheld FM Amateur Ham Transceiver
Summary:
ULTRA-COMPACT HAND-HELD FM TRANSCEIVER
The new ultra-compact VX-3R 2m/70cm FM HT Transceiver is loaded with convenience features. In additon to top quality performance on the 2m and 70cm, you will also be able to enjoy stereo FM and improved AM broadcast band reception with our new Internal Bar Antenna.
And "When All Else Fails" and local power service is not available to power your charger, you can now operate using "AA" batteries with our optional battery case.
Yaesu Again Leads the World with our Latest Compact HT !
Features:
Ultra-compact and Light Weight
1.9" X 3.2" X .9"
4.6 ounces
Rugged Construction
Tough where it counts - Aluminum Die-Cast Chassis
Plenty of Power Output in a Compact Package
1.5 W (4.5 V AA x 3 or 3.7 V FNB-82LI 144 MHz)
3 W ( 6 V or EXT DC 144 MHz)
1 W (4.5 V AA x 3 or 3.7 V FNB-82LI 430 MHz)
2 W ( 6 V or EXT DC 430 MHz)
Low 0.1 W ( 4.5 V AA x 3 or 3.7 V FNB-82LI)
Low 0.3 W (6 V or EXT DC)
Supplied with Tiny Super-thin, Lithium-ion High-Capacity Battery and Charger
Long life in a quality battery for extended usage
Operate with AA Batteries with Optional Battery Case
Requires Optional FBA-37 Battery Case. When traditional local power service is not available to power your battery charger, this feature insures continued operation using readily available "AA" batteries.
Internal Bar Antenna for AM Broadcast Band Reception
Improved AM Broadcast Band reception for your entertainment
Designated Earphone Jack for FM Stereo Broadcast Listening
Makes the VX-3R a useful receiver far beyond its Amateur Radio applications
Listen to AM or FM Broadcast while Monitoring an Amateur Frequency
Sub RX feature allows you to listen to your favorite AM or FM Stereo Broadcast station while monitoring an Amateur Radio frequency...AT THE SAME TIME!
Wide-band Receiver Coverage
Extremely wide receiver coverage - see "Specifications"
Special Memory Banks - WX, VHF Marine, Shortwave Broadcast
The VX-3R has special memory bands programmed with WX broadcast, VHF Marine, and world-wide short-wave broadcast stations
Huge 1000-channel Memory Capacity
Plenty of memory space for ALL of your favorite frequencies
New Mechanical Dial Lock Function
No more "bumps" off your desired channel - lock it and keep it.
Equipped for Worldwide Internet Linking
Talk Around the World using Yaesu WIRES II Internet Linking!
Go to the Yaesu website front page, www.yaesu.com , click on "Products", and then click on "WIRES" for more information on this exciting communications opportunity
CW Learning and Training Feature
CW (Morse Code) licensing requirements have been removed by the FCC. However, all of those HF, VHF, and UHF Morse code designated frequencies are still there with loads of weak signal DX just waiting for you. Consider learning the Morse code - we will help you experience the excitment of working the World on CW with our VX-3R CW Learning and Training feature
Specifications:
Frequency Ranges: RX 0.5-1.8 MHz (AM Broadcast)
(USA Version) 1.8-30 MHz (SW Band)
30-76 MHz (50 MHz HAM)
76-108 MHz (FM)
108-137 MHz (Air Band)
137-174 MHz (144 MHz HAM)
174-222 MHz (VHF TV)
222-420 MHz (ACT1)
420-470 MHz (430 MHz HAM)
470-800(729) MHz (UHF TV)
(757-774) MHz (UHF TV)
800-999 MHz (GEN2; USA Cellular Blocked)
TX 144-146(148) MHz
430-440(450) MHz
Channel Steps: 5/9/8.33/10/12.5/15/20/25/50/100 kHz
Frequency Stability: ±5 ppm (–10 °C to +60 °C)
Repeater Shift: ±600 kHz (144 MHz)
±1.6/5.0/7.6 MHz (430 MHz)
Emission Type: F2D , F3E
Antenna Impedance: 50 W
Supply Voltage: Nominal: 3.7 V DC, Negative Ground
Operating: 3.5 ~ 7 V, Negative Ground (EXT DC Jack)
5.0 ~ 7 V, Negative Ground (EXT DC Jack with Charging)
Current Consumption:120 mA (Receive)
60 mA (Standby, Saver Off)
30 mA (Standby, Saver On, Save Ratio 1:2)
50 mA (Radio Band Receive)
100 µA (Auto Power Off)
1.3 A (1.5 W Tx , 144 MHz) 3.7 V DC
1.6 A (3 W Tx , 144 MHz) 6 V DC
1.2 A (1 W Tx , 430 MHz) 3.7 V DC
1.8 A (2 W Tx , 430 MHz) 6 V DC
Operating Temperature: –20 °C to +60 °C
Case Size (W x H x D): 1.9” x 3.2” x 0.9” (47 x 81 x 23 mm) (W/O knob & antenna)
Weight: 4.6 oz (130 g) With FNB-82LI & antenna
Transmitter
RF Power Output:1.5 W ( 4.5 V AA x 3 or 3.7 V FNB-82LI 144 MHz)
3 W ( 6 V or EXT DC 144 MHz)
1 W (4.5 V AA x 3 or 3.7 V FNB-82LI 430 MHz)
2 W (6 V or EXT DC 430 MHz)
Low 0.1 W ( 4.5 V AA x 3 or 3.7 V FNB-82LI)
Low 0.3 W ( 6 V or EXT DC)
Modulation Type: Variable Reactance F2D , F3E
Maximum Deviation:±5 kHz (F2D , F3E)
Spurious Emission: At least 60 dB below (HIGH)
At least 50 dB below (LOW or less than 1 W)
Microphone Impedance: 2 kW
Receiver
Circuit Type: AM, NFM: Double-Conversion Superheterodyne
WFM: Triple-Conversion Superheterodyne
AM Radio/FM Radio: Single-Conversion Superheterodyne
Intermediate Frequencies:1st: 47.25 MHz (AM, NFM)
1st: 45.8 MHz (WFM)
1st: 130 kHz (AM Radio/FM Radio)
2nd: 450 kHz (AM, NFM)
2nd: 10.7 MHz (WFM)
3rd: 1 MHz (WFM)
Sensitivity: 3 µV for 10 dB SN (0.5-1.8 MHz, AM Radio)
3 µV for 10 dB SN (0.5-30 MHz, AM)
0.35 µV TYP for 12 dB SINAD (30-54 MHz, NFM)
1 µV TYP for 12 dB SINAD (54-76 MHz, NFM)
1.5 µV TYP for 12 dB SINAD (76-108 MHz, FM Radio)
1.5 µV TYP for 10 dB SN (108-137 MHz, AM)
0.2 µV for 12 dB SINAD (137-140 MHz, NFM)
0.16 µV for 12 dB SINAD (140-150 MHz, NFM)
0.2 µV for 12 dB SINAD (150-174 MHz, NFM)
1 µV TYP for 12 dB SINAD (174-225 MHz, NFM)
0.5 µV for 12 dB SINAD (300-350 MHz, NFM)
0.2 µV for 12 dB SINAD (350-400 MHz, NFM)
0.18 µV for 12 dB SINAD (400-470 MHz, NFM)
1.5 µV for 12 dB SINAD (470-540 MHz, WFM)
3 µV TYP for 12 dB SINAD (540-800 MHz, WFM)
1.5 µV TYP for 12 dB SINAD (800-999 MHz, NFM)
USA Version Cellular Blocked
Selectivity: NFM, AM: 12 kHz/35 kHz (–6 dB /–60 dB)
WFM :200 kHz / 300 kHz (–6 dB/–20 dB)
AF Output: 50 mW 8 W for 10 % THD ( 3.7 V)
100 mW 8 W for 10 % THD ( 6 V)
Package Contents:
1× Yaesu VX-3R Radio
1× SMA-Male Antenna YHA-66
1× FNB-82LI 1100mAh Li-ion Battery
1× PA-46B AC Adapter
1× User Manual
