Walkie Talkie Best Sale Choice provide hanheld radio,walkie talkie,portable radio Great Gift TYT TH-UVF9D walkie talkie dual display three band 136-174 350-400&400-480MHz two way radio. Price at this time US $77.13/piece. Check price now to get discount! Dont waste your time. Buy Now only in HOT SALE RADIO Trusted Seller Store!
Inexpensive price as well as complimentary shipping. Allow's get before prices climb.

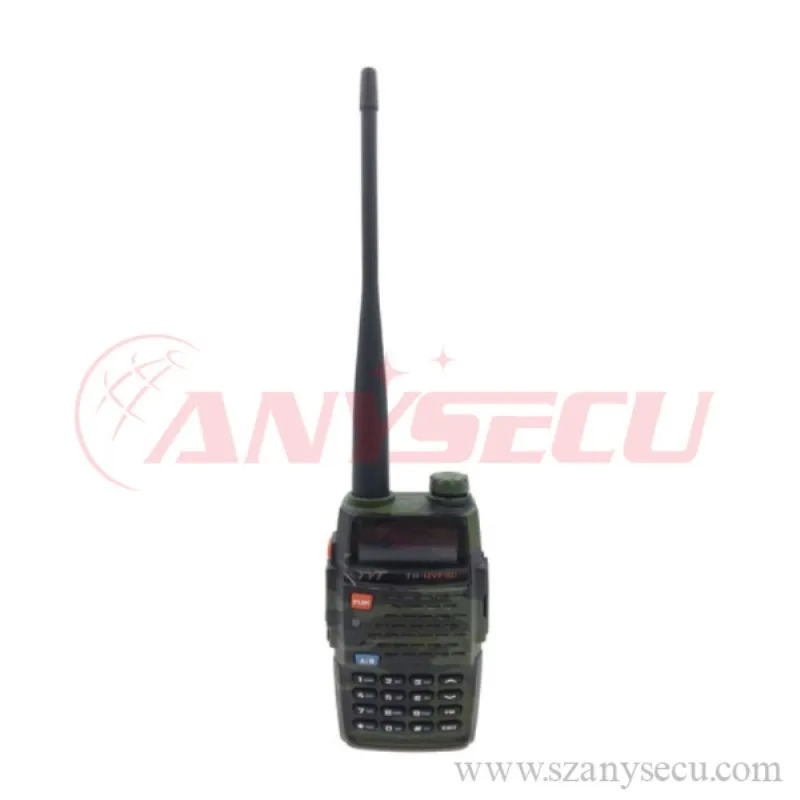

TYT TH-UVF9D walkie talkie dual display three band 136-174 350-400&400-480MHz two way radioTri-band, dual display, dual standby
A/B band independent operation
Scrambler
COMP
128*2 groups channels storage
FM radio and 25 stations storage
Wide/Narrow Band(25kHz/12.5kHz)
0~9 grades VOX selectable
Chinese/English voice prompt
CTCSS/DCS and scanning
1750Hz tone
PTT & ANI ID
Priority transmit selectable
0~9 grades squelch level setting
LED display mode
Keypad beeper setting
Transmit over beeper
Dual watch/monitor
Receive saving function
Auto keypad lock
Power-on display
Battery power voltage
Power-on message
Repeater offset function
Channel name display and setting
Reapter shift direction
VFO step function
Shortcut menu operation mode
Emergency Alarm
DTMF encoder & decoder
Remote skill/stun/activate(optional)
High/Low TX power selectable
Busy channel lock-out(BCLO)
Transmitter time-out timer(TOT)
Voice companding
Tri-color background light selectable
PC programmable
Wire clone
| Item number | TH-UVF9D |
| General | |
| Frequency Range | 70-108MHz(FM Receive only) 136-174MHz350-390MHz400-470MHzOr 70-108MHz(FM Receive only) 220-260MHz350-390MHz400-470MHz |
| Channel No. | 128*2 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 7.2V |
| Mode of operation | Simple or semi-duplex |
| Dimension(W x H x D) | 100 x 52 x 32 mm |
| Weight | 250g(including battery, antenna) |
| Transmitter | |
| Output power | ≥4W(H) ≥0.5W(L) |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) |
| Spurious Radiation | <7μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | <10% |
| Receiver | |
| RF Sensitivity | -122dbm(12db SINAD) |
| Audio power | ≥0.5W |
| Audio Distortion | ≤10% |
| Intermediation | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Selectivity | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Spurious Rejection | ≤-65dB |
| Blocking | ≥85dBuv/m |
