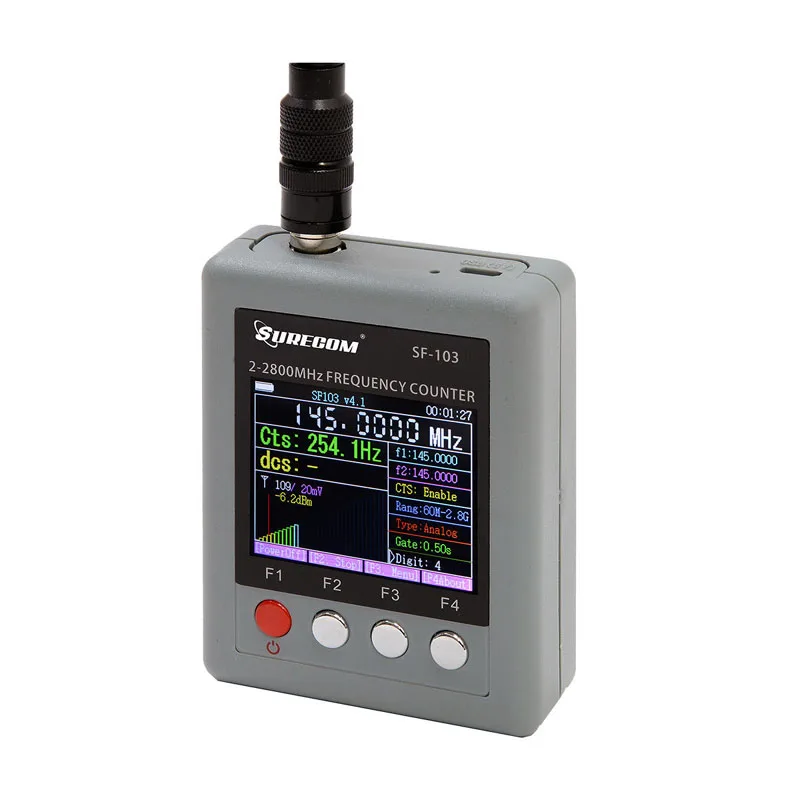

2018 New SURECOM SF-103 Portable Frequency Counter Meter 2MHz - 2.8GHz SF103 Portable Tester for Walkie Talkie CTCSS CDCSS Meter

2018 New SURECOM SF-103 Portable Frequency Counter Meter 2MHz - 2.8GHz SF103 Portable Tester for Walkie Talkie CTCSS CDCSS Meter intercom radio Rating: 5 out of 5

Walkie Talkie Best Sale Choice provide dual band radio,amateur radio,radio communicator 2018 New SURECOM SF-103 Portable Frequency Counter Meter 2MHz - 2.8GHz SF103 Portable Tester for Walkie Talkie CTCSS CDCSS Meter. Price at this time US $58.99/piece. Check price now to get discount! Dont waste your time. Buy Now only in ZONOPromotions Store Trusted Seller Store!

You need to make sure that before you buy any type of item you have actually already seen and check out the customer reviews of the item. In this manner you could be certain that you are getting the appropriate goods that will certainly suit your demands.The SURECOM SF-103 hand-held frequency counter is a more practical counter, even advanced features such as field strength measurement are incorporated. It is compact, truly pocket sized, test instrument designed for ease of use and dependable performance. Supplied as a complete with internal Li-ion battery pack, AC wall charger and antenna.Introduction:　 The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator.it is the tool of choice for maintenance personnel ,test frequency and signal strength for wireless enthusiasts.This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio. There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure. Its four-button control is easy to use and its small size allows you to carry it anywhere you like. Work by TCXO(Temperature Compensate Xtal (crystal) Oscillator) ,In the range of -45 ℃ ~ 65 ℃ can reach ± 2 ~ ± 4ppm accuracyThis include very interesting frequency areas such as 2m HAM radio, all VHF and UHFDMR Radio signal e frequency counter.GUI Battery levelFeature & Specification: Frequency range two select : 2MHz-200MHz / 27MHz -2800MHz CTCSS/DCS DecoderFrequency counter Digital mode for DMR radio Work by TCXO( Temperature Compensate Xtal (crystal) Oscillator) 2～2.5ppm Frequency Response time: 0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec) TFT Color Display 240 x 320 ,LCD Dim level setting Build-in Li-ion battery Net Weight: 113g 4 buttons control Auto power off 1-9minutesCharging battery LED indicatorPackage include:1 x SF-103 frequency counter1 x DUAL BAND UHF / VHF antenna1 x BELT CLIP 1 x USB CHARGER with cable .1 x ENGLISH MANUALUser manual: 1.1 Power On/Off:Power on ,press and Hold down the [Red key] by 3 second Power off ,press and Hold down the [Red key] by 3 second of number count down to 01.2 Charging the battery : Plug the power cord into adaptor , micro usb connect SF103 The Led indicating: *The RED light Charging * The Green light is Full 1.3 Setup the frequency Range : Press[ F2.stop ] button ,[F3 -->] select function to "Rang" Press the [F4 Ent] Select 27M-2.8G(27MHz-2800MHz) /<=200MHz (below 200MHz) , and then press[F2] to Run 1.4 Setup the time Gate : Press[ F2.stop ] button ,[F3 ---> ] select Function to "Gate" Press the [F4 Ent] select : 0.1s / 0.25s / 0.5s / 1.0s ,and then press [F2] to Run 1.5 Setup the Frequency counter digi : Press[ F2 ] botton ,[F3--->] select Function to "Gate" Press[F4 Ent] Select : 3 / 4 / 5 / 6 , and then press [F2] to Run ! 27MHz-2.8GHz for 3 / 4 only , 2-200MHz for 3 / 4 / 5 / 6 , Detail Please see Table 1: 1.6 How to check Frequency of Digital DMR Radio Press[ F2 ] botton ,[F3 --->] select Function to" type" :Press [F4] select Analog / Digital(DMR) , and then Press [F2] to Run !Note. Digital mode have 3 Decimal only. 1.7 How to ADJ. the Frequency mode of 27MHz -2.8GHz: ( See PIC.2)Press, [F3 MENU ] , [F3 Down] / [ F4 Up] to select the Gate to (0.1s/0.25s/0.5s/1.0s)Press, [F2 Edit] / [F3 - ] and [ F4 +] to select the +/- 99Press, [F1. Main] exit , and then press [F4 save] for save the setting .([F1] not save for exit) 1.8 How to fine tune the Frequency mode of 2-200MHz: (See PIC.1 ) Tune the PCB VR1 (Variable resistance) (The factory has been set accurate, such as non-technical staff do not tune) 1.9 How to use [F3 menu ] mode: (see PIC2) Press, [F3 - ] / [ F4 +] select the function ,and then press [F2 edit] for edit mode ,Press, [F3 - ] / [ F4 +] selecy for change the data . Press, [F1. Main] exit , and then press [F4 save] for save the setting .([F1] not save for exit) Caution: 1)Max. direct input signal 5Vp-p 2)Prohibit direct access to the radio antenna output, resulting in damage to the frequency meter Frequency Display Resolution / CTCSS ,DCS Decode frequency range SELECT A 27MHz-2.8GHz Gate Time select (seconds) Sample Display (100MHz) CTCSS/DCS Digiselect A3 4 5 6 Decode Range132-173MHz200-260MHz400-519MHz 0.10 s 100.000 100.00000.25 s 100.000 100.0000 0.50 s 100.000 100.0000 1.00 s 100.000 100.0000 SELECT B 2MHz-200MHz Gate Time select (seconds) Sample Display (100MHz) CTCSS/DCS Digi select B3 4 5 6 Disable0.10 s 100.000 100.0000 0.25 s 100.000 100.0000 0.5 s 100.000 100.0000 100.00000 100.0000001.00 s 100.000 100.0000 100.00000 100.000000How to check CTCSS/DCS code 1.Radio must be 132-173 / 200-260MHz / 400-519MHz2.Radio must be ANALOGCTCSS/DCS Decoder for ANALOG mode CTCSS (Hz)50.0 97.4 151.4 192.855.0 100.0 156.7 196.667.0 103.5 159.8 199.569.3 107.2 162.2 203.571.9 110.9 165.5 206.574.4 114.8 167.9 210.777.0 118.8 171.3 218.179.7 123.0 173.8 225.782.5 127.3 177.3 229.185.4 131.8 179.9 233.688.5 136.5 183.5 241.891.5 141.3 186.2 250.394.8 146.2 189.9 254.1　CDCSS for ANALOG mode (N code only) Standard(N) sf103check 　 Standard(N) sf103check 　 Standard(N) sf103check 　 Standard(N) sf103check23 23 143 143 　 266 465 46525 25 　 145 271 271 466 46626 26 152 152 　 274 503 50331 31 155 155 306 306 506 50632 32 156 156 311 311 516 516　 36 162 162 315 315 532 53243 43 165 165 　 325 546 54647 47 172 172 331 331 565 56551 51 174 174 　 332 606 606　 53 205 205 343 343 612 61254 54 　 212 346 346 624 62465 65 223 223 351 351 627 62771 71 　 225 　 356 631 63172 72 226 226 364 364 632 63273 73 243 243 365 365 654 65474 74 244 244 371 371 662 662114 114 245 245 411 411 664 664115 115 　 246 412 412 703 703116 116 251 251 413 413 712 712　 122 　 252 423 423 723 723125 125 　 255 431 431 731 731131 131 261 261 432 432 732 732132 132 263 263 445 445 734 734134 134 265 265 464 464 743 743 754 754Specifications for FREQUENCY SF401/SF103 FUNCTIONSF-401-PLUS SF-103Frequency Range: 27MHz-3000MHz 2MHz-2800MHzGate Speeds select: N/A 0.1 / 0.25 / 0.5 / 1.0 SecondDIGITAL: 3-4 3-6 DIGITAL mode : DMR system Distant : 0.3-1M 0.3-9M Walkie talkie code of CTCSS/DCS: must be 132-173 / 200-260MHz / 400-519MHz Signal attenuation s.w.-10db by switch AUTO GAINLi-ion Battery Built-in: 600mAH 1500mAHTFT LCD: 320 x 240 pixelsCurrent consumption: 10MA 30-50MATCXO crystal Oscillator +- 2.5ppm +- 2.5ppmCharger input: Micro USB +5V inImpedance input: 50 Ohm (BNC)Weight: 100g 113gDimensions size : 70 x 25 x 90mm ( not include antenna & BNC socket) Accessory1 x SF-1031 x 0051-002-0281 x 5-003BNC-UV1 x 0091-801-0235B1 x USB0X​Shipping Time Tips:All of package sent by registered mail. with tracking number can follow package statu. it is security of safe freight.Shipping time is about 20--50 days.As a result of various countries policies and weather and other reasons. sent to diffrent country ,shipping time will be diffrent.Has any questions. please feel free to contact me through ali message. thank you! Feedback:Leave negative feedback is can not solve problem.There are many, more positive ways to phase this about good communicationPlease sent message to us through Aliexpress. we will try us best to solve your problem. thank you! ​About Taxes:We will try our best to service you. Because custom rules are different in each country,tariffs and excise taxes are not our responsibility and were not qualified to answer questions on this topic.Please research your countrys tariffs and import excise taxes before purchasing..
