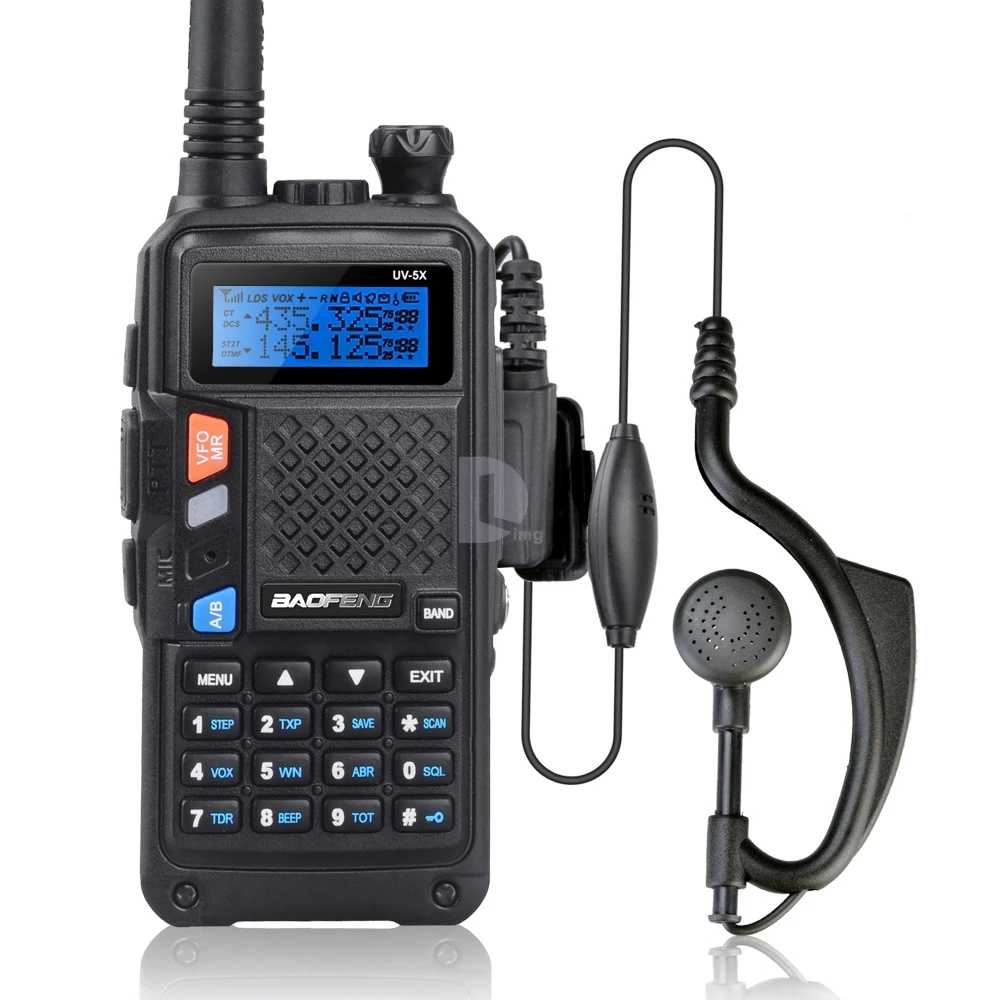

Original BAOFENG UV-5X Upgraded Version of UV-5R UHF+VHF Two-Way Radio Walkie Talkie FM Function w/ Original Main Board
Highlight: 100% Original Mother Board,Unique Custom Design !!
Features:
1. Dual-band handheld transceiver with display function menu on the display “LCD”
2. DTMF encoded
3. Lithium-ion battery with high capacity
4. Commercial FM radio receiver (65 MHz ~ 108MHz)
5. Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable
6. Function “VOX” (voice operated transmission)
8. Alarm function
9. Up to 128 memory channels
10.Broadband (wide) / Narrowband (narrow), selectable
11.High power / low (5W/1W) selectable
12.Display illumination and programmable keyboard
13.Function “beep” on the keyboard
14.Dual watch/dual reception
15.Selectable frequency step 2.5/5/6.25/10/12.5/25kHz
16.Function “OFFSET” (frequency offset for repeater access)
17.Battery saving function “SAVE”
18.Timer transmission “TOT” programmable
19.Selecting the Scan Mode
20.Function Busy Channel Lock “BCLO”
21.Built-in RX CTCSS/DCS scan
22.Built-in LED flashlight
23.Programmable by PC
24.Level threshold “Squelch” adjustable from 0 to 9
25.Crossband reception
26.Tone end of transmission
27.Built-in key lock
Specification:
General
- Frequency Range: VHF 136-174 MHz (Rx/Tx). UHF 400-520MHz (Rx/Tx);
65MHz - 108MHz (Only commercial FM radio reception)
- Memory channels: Up to 128 channels
- Frequency stability: 2.5ppm
- Frequency step: 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/25KHz
- Antenna impedance: 50 ohm
- Operating temperature: -20 to +60 centi-degree
- Supply voltage: Rechargeable Lithium-ion 7.4V/2000mAh
- Consumption in standby: <= 75mA
- Consumption in reception: 380mA
- Consumption in transmission: <= 1.4A
- Mode of Operation: Simple or semi-duplex
- Duty cycle: 03/03/54 min (Rx/Tx/Standby)
- Dimension: 110x58x33 mm
- Weight: 222g (included battery+ antenna)
Transmitter
- RF power: 4W/1W
- Type of modulation: FM
- Emission class: 16kΦF3E / 11kΦF3E (W/N)
- Maximum deviation: <= ±5kHz / ≤ ±2.5kHz(W/N)
- Spurious emissions: <-60dB
Receiver
- Receiver sensitivity: 0.2uV(at 12dB SINAD)
- Intermodulation: 60dB
- Audio Output: 1000mW
- Adjacent channel selectivity: 65/60dB
Power Adapter
- Input: AC100-240V, 50-60Hz; Output: DC10V/500mA; Plug Type: US
Package contents:
1x BAOFENG UV-5X FM Two-Way Radio Body (One 7.4V/2000mAh Battery included)
1x Antenna
1x Power Adapter
1x Belt Clip
1x Battery Charger
1x Earpiece
1x Hand Strap
1x User Manual
