Fantastic Special 2sets/lot DMR828 Digital mobile radio UHF 400-480mhz | VHF 134-174MHz 2W all-in-one 8Km digital wakie talkie transceiver

Fantastic Special 2sets/lot DMR828 Digital mobile radio UHF 400-480mhz | VHF 134-174MHz 2W all-in-one 8Km digital wakie talkie transceiver Rating: 5 out of 5

Walkie Talkie Best Sale Choice provide amateur radio,two way radio Fantastic Special 2sets/lot DMR828 Digital mobile radio UHF 400-480mhz | VHF 134-174MHz 2W all-in-one 8Km digital wakie talkie transceiver. Get Discount Now! Only US $110.04/lot at this time. Hurry buy Now before back to normal price! Normal price US $131.00 or you can Check price now. Dont waste your time. Buy Now only in NiceRF Wireless Manufacturer Trusted Seller Store!
No comment

2sets/lot DMR828 Digital mobile radio UHF 400-480mhz | VHF 134-174MHz 2W all-in-one 8Km digital wakie talkie transceiverDMR828 is a 2W long distance all-in-one DMR walkie talkie module. Only need external power supply and speaker, it is easy to become a professional digital walkie talkie. Simplified interface and Ultra small size make this module widely used in various applications and conveniently embedded into various handheld device DMR828-NVOC: U band, 400 -- 480MHzDMR828-NVOC: V band, 134 -- 174MHz

We also have DMR828-AMBE version to communicate with Moto device, please click

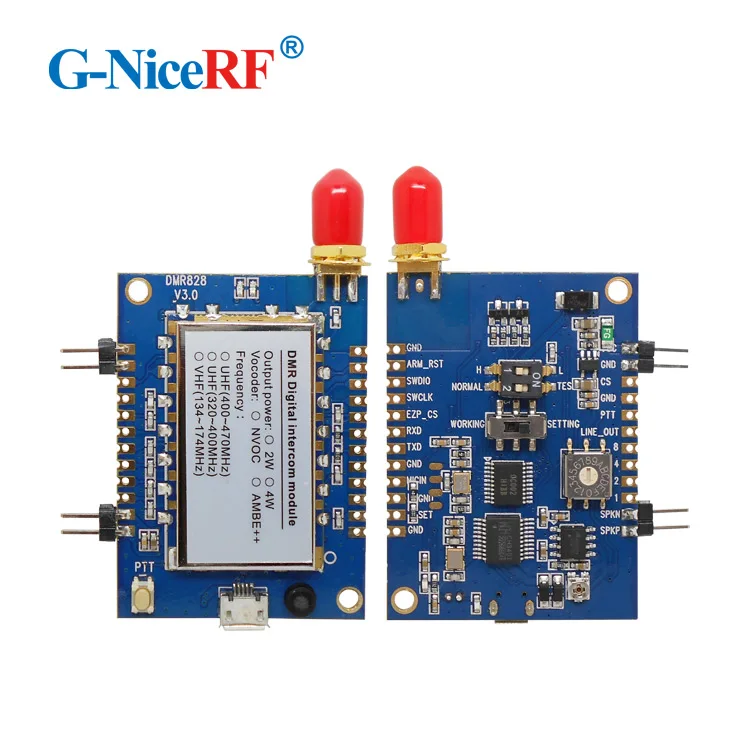

Product Picture:

Features

  • UHF band frequency:UFH 400-470mhz / VFH 134-174MHz/320-390MHz

  • Distance up to 8Km

  • Max power output to 2W

  • low power to 0.5W

  • High Sensitivity:-124dBm

  • Bit error rate down to 1% under -121dBm

  • Independent frequency for Tx and Rx

  • Bandwidth: 12.5 / 25 KH

  • Voice and text messages communication

  • Reminder for input calling, calling status checking

  • DMR /Analog walkie talkie

  • Message transmission and reception

  • Built-in EEPROM, data saved even powered off

  • 1ppm TCXO crystal

  • 51 CTCSS

  • 166 CDCSS

  • 9 adjustable volume

  • Enhanced encryption of Voice and Text message

Application

  • Small professional walkie talkie
  • Invisible intercom system
  • Building community security system
  • Sport products
  • Handheld / Pocketable device
  • Audio surveillance system

Specification:

Pin out definition:

Mechanical dimension:

Functions descriptions

DMR828 has default 16 channels, CH0~CH7 in DMR mode, CH8~CHF in analog mode. All the parameters can be configured by serial instructions.

Parameters configuration

DMR828 Module offers standard serial port, users can configure and read the related parameters by sending serial instructions. Module has built-in memory, all configured parameters can be saved even power off. Meanwhile, we offer PC software to customers free of charge. DMR828 can be connected with computer via USB cable or UART interface, in this way, users can configure the parameters on PC software or their own device. The connection as shown in the figure below:

1) Antenna

Antenna is an important part in communication system. Its performance will influence the whole communication system. This module requires antennas impedance in 50oHm. Regular used antenna is rubber straight antenna, sucker antenna, telescopic antenna and so on. Users can choose the antenna according to the application environment. To make sure modules in the best working mode, we recommend the antennas from our company.

  • 2pcs UHF(400 - 470MHz ) all-in-one Digital walkie talkie module DMR828-NVOC
  • 2pcs 433MHz antenna sw433-ZB165

If you need VHF(134~174MHz) frequency, just leave message please!

We also have DMR828-AMBE version to communicate with Moto device, please click

Shipment: Free shipping by China post airmail
