Walkie Talkie Best Sale Choice provide dual band radio,two way radio Great New 8pcs RDA1846S radio transmission system walkie talkie module SA818 VHF band 134 -- 174MHz with Scan function. Get Discount Now! Only US $86.40/lot at this time. Hurry buy Now before back to normal price! Normal price US $108.00 or you can Check price now. Dont waste your time. Buy Now only in NiceRF Wireless Technology CO.,LTD Trusted Seller Store!

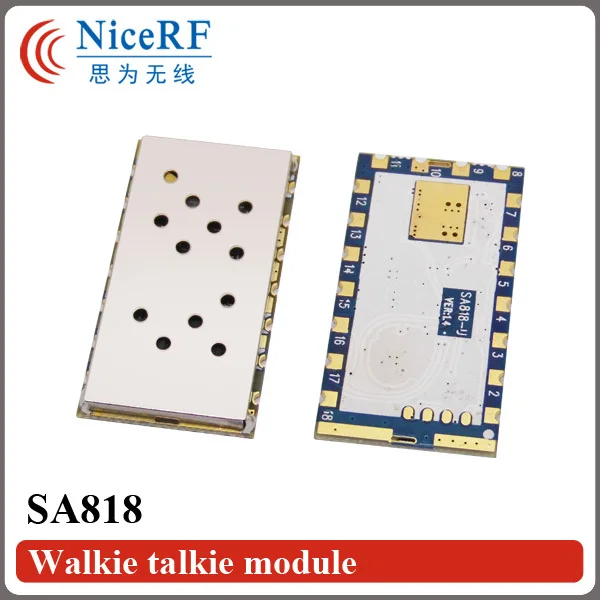

8pcs RDA1846S radio transmission system walkie talkie module SA818 VHF band 134 -- 174MHz with Scan function
SA818 is a low cost and high performance integrated walkie talkie module. This module is the 2nd generation of the walkie talkie module and the upgraded version of SA808.SA818 comes with built-in high performance microcontroller, narrow band rf transceiver and standard UART interface. It is easy to use. Users only need to add external audio amplifier, microphone and speaker, then it becomes a professional walkie talkie with 1W output. In open area, it can easily achieve 3.5-5Km communication distance. Simplified interface and ultra small size make this module widely used in various applications and conveniently embedded into various handheld devices.
There are two frequency bands of SA818: SA818-U and SA818-V. The only difference is the frequency range. The others are same, including module size, interface, software protocol, etc. The two modules’ frequency ranges are:
SA818-U: U band, 400 -- 480MHz,
SA818-V: V band , 134 -- 174MHz
Features:
Frequency range:
SA818-U: 400 ~ 480 MHz (UHF)
SA818-V: 134 ~174MHz (VHF)
Tx and Rx frequency, Tx andRxCTCSS,CDCSS can be set alone.
Band width 12.5/25KHz
Output power up to 1 w
Transmission distance up to 3.5 to 5 kminOpen area
sensitivity: - 124 DBM
small size
Built-in EEPROM, data kept unchanged even powered off
38 CTCSS
166 CDCSS
8 level squelch
8 adjustable volume
high/ low power is optional (500 mw)-1w
wide range of working voltage 3.3 to 5.5 V
1 ppm KDS TCXO crystal,
What does include in the package:
8pcs SA818 Walkie talkie module
8pcs Spring Antenna
