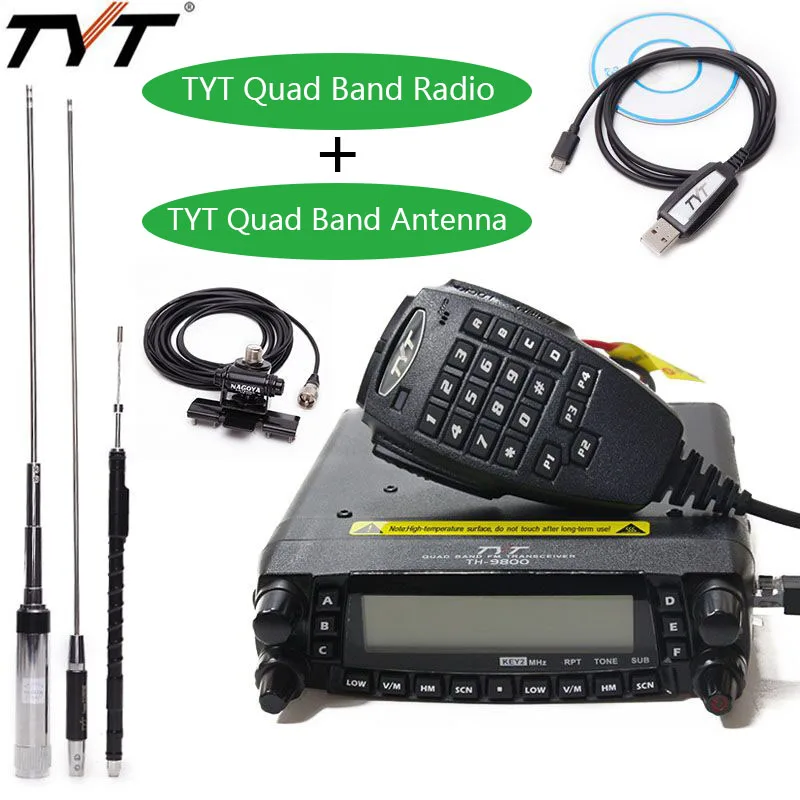

Walkie Talkie Best Sale Choice provide radio transceiver,two way radio,portable radio,dual band radio 2018 Offers TYT TH-9800Plus Quad Band Car Radio Station+Antenna/Cable 50W Transceiver TH9800 VHF UHF CB Walkie talkie for truckers Ham Radio. Price at this time US $224.88/piece. Check price now to get discount! Dont waste your time. Buy Now only in Yell Online Sales Store Trusted Seller Store!
As a goods that assists your should get comfort, certainly this product is extremely fascinating to obtain. This product is extremely atmosphere pleasant. Where to cleanse it is very simple. You do not should seek solutions to clean up your purchased items, simply do it on your own in your home using the guidelines that have actually been given. This classy as well as easy style is best for those of you that enjoy the minimal design in every goods you have. Furthermore, there are lots of even more various functions that you can get and obviously really assists you to promote all your hectic life.
This is an original TYT antenna that with TYT logo. This antenna is designed for TYT TH-9800 car radio. Using this antenna on the TYT TH-9800 car radio, it could achieve the best effectiveness of use.Hot spots:
1.800 Memory channel
2. Quad band V/V ,U/U,V/U
3. Quad band Transmitter
4. Ultra-size LCD dual display screen
5 Voice compander and encryption scramble a set of scrambled
6. When distance, but when repeaters use
Detailed introduction:
All of our item are Brand new | |
Model | TH-9800 |
Frequency range | Left Band: |
Right Brand | |
Quad band Transmitter and receiver | 29/50/144/430MHz |
Channel steps | 2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50kHz |
Modes of emission | FM |
Antenna impedance | 50 ohm Unbalanced(antenna duplexer built-in) |
Frequency stability | ±5ppm |
Operating temperature range | -20°C—60°C |
Supply voltage | 13.8V DC |
Current consumption | RX:0.5A TX:8.5A |
Case size(W x H x D) | 140 x 41.5 x 168mm |
Weight | About 1.2kg |
Main features | |
Cover 29/50/144/430MHz four transmitting bands | Yes |
Wide receiving range:26-33 47-54 108-180 320-512 750-950MHz | Yes |
AM Air-band reception capability | Yes |
Independent controls for each left and right band | Yes |
V+U,U+U,V+U simultaneous receive capability | Yes |
Built-in V+U cross band repeater and full duplex capability | Yes |
800memory channels and independent setting per channel | Yes |
50W of high power output for VHF band and 40W for UHF band | Yes |
Standard 50 groups of CTCSS tone and 104 groups of DCS code | Yes |
User-defined CTCSS tone and DCS code capability | Yes |
DTMF/2-tone/5-tone for selective calling | Yes |
Encryption scramble(8 group) | Yes |
Automatic repeater SHFT(ARS) | Yes |
Detachable front controller and remote mounting capability | Yes |
Ultra-size LCD dual display screen | Yes |
User-programmable microphone keys | Yes |
Adjusting the squelch level | Yes |
Selecting the operating band | Yes |
Memory scanning VFO scanning | Yes |
Cross-band repeater operation | Yes |
Specifications | |
Output power | 50/20/10/5W (29/50/144MHz) |
40/20/10/5W (430MHz) | |
Maximum deviation | ±5kHz |
Spurious radiation | <-60dB(29MHz:<-50dB) |
Modulation distortion | <3% |
Microphone impedance | 2k ohm |
Receiver | |
Intermediate frequency | 49.95mhZ/450khZ(Left band) |
38.85MHz/450MHz (Right band) | |
Sensitivity(for 12dB SINAD) | <0.2µV |
Squelch sensitivity | <0.16µV |
Selectivity | 12kHz/30kHz |
Package Include:
1 x Radio unit
1 x Keypad DTMF microphone
1 x Radio body mounting bracket
1 x DC power cable with fuse holder
1 x Front controller mounting bracket
1 x Screw pack
1 x Protection fuse
1 x User manual
